V-Grooving Machines: Your Key to Faster, Cleaner, and Smarter Cuts

In the competitive world of metal fabrication, signage, and architectural metalwork, the difference between profit and loss often comes down to efficiency and finish quality. For decades, creating precise, angled grooves in sheet metal for bending was a slow, labor-intensive process involving multiple steps: scoring, deburring, and finally, bending on a press brake. This method was not only time-consuming but also left room for error and material stress.

Enter the V-grooving machine. This specialized piece of equipment has revolutionized how shops approach bending preparation, offering a streamlined, superior alternative.

What is V-Grooving? Understanding the Fundamentals

At its core, V-grooving (also known as sheet metal V-grooving or precision panel bending) is a machining process that removes a precise “V”-shaped channel from metal sheets. This is done using a specialized cutting tool, typically a carbide-tipped blade, set at a specific angle (commonly 30°, 45°, or 90°).

The primary purpose of this groove is to facilitate a clean, crisp bend. By removing material and reducing the thickness at the bend line, the metal can be folded by hand or with minimal force, often eliminating the need for a traditional press brake for certain applications. This is not just a score; it’s a controlled removal of material to a specific depth, leaving a smooth, burr-free finish right out of the machine.

How Does a V-Grooving Machine Work?

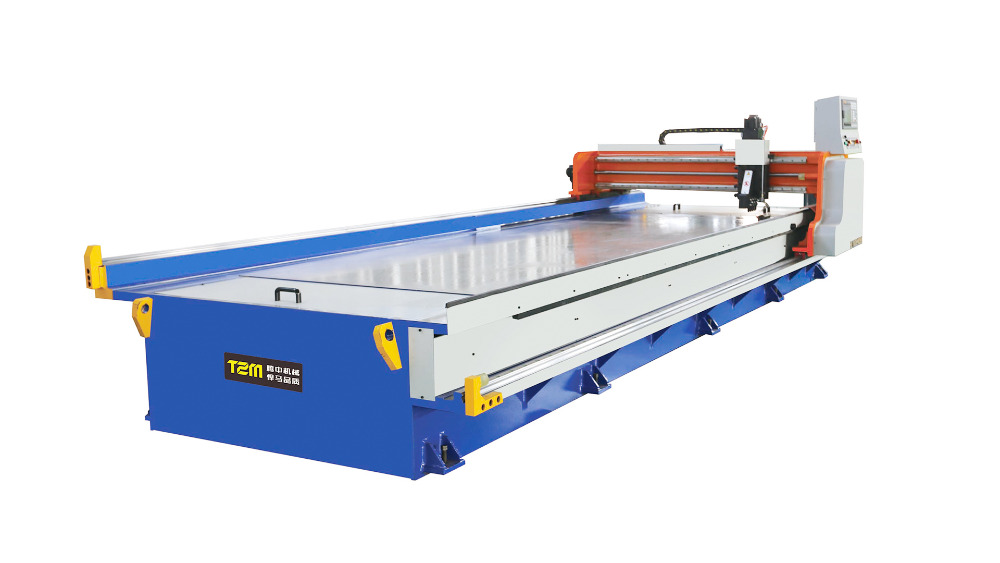

A typical industrial V-grooving machine operates on a straightforward principle:

Material Placement: The metal sheet (stainless steel, aluminum, brass, copper, or even mild steel) is placed on the machine’s work table.

Precision Positioning: The operator uses guides, digital readouts, or a CNC V-grooving system to position the sheet precisely under the cutting head.

The Cutting Process: A high-speed spindle, holding the V-shaped cutting tool, descends and moves along a guided path, machining the groove into the material with exceptional accuracy. The depth of the cut is meticulously controlled to leave a thin, consistent “hinge” of material—typically around 0.5mm to 1mm—ensuring a perfect bend without breaking.

Completion: The process is repeated for all required bend lines. The sheet can then be easily folded by hand into the desired shape, such as a box, enclosure, or architectural panel.

The Unmatched Advantages: Why Your Shop Needs a V-Grooving Machine

The benefits of integrating this technology into your workflow are substantial and multifaceted.

1. Unparalleled Speed and Throughput (Faster Cuts)

Time is money. V-grooving machines dramatically accelerate the production process.

Elimination of Secondary Operations: The most significant time savings comes from the reduction or complete elimination of secondary processes. There’s no need for deburring after grooving, as the cut is clean. This directly translates to a high-speed metal grooving solution that slashes labor hours.

Reduced Setup Time: Compared to setting up a press brake with the correct punch and die for each unique job, setting up a V-groover is incredibly fast. For prototypes and short runs, this is a game-changer.

Continuous Production Flow: Operators can groove one sheet while another is being folded or assembled, creating a more efficient, assembly-line style production cell.

2. Superior Edge Quality and Consistency (Cleaner Cuts)

The finish quality achieved by a V-groover is simply unattainable with traditional scoring and shearing methods.

Burr-Free Edges: The machining process produces a smooth, clean groove with minimal to no burr. This is critical for applications where safety and aesthetics are paramount, such as architectural metal panel fabrication or food-grade equipment.

Elimination of Microfractures: Laser cutting or plasma cutting can create heat-affected zones and microfractures at the edge, which can lead to cracking when bent. Cold cutting V-groove machinery performs a machining operation that produces no heat, preserving the integrity of the material and ensuring a perfect, crack-free bend every time.

Perfect 90-Degree Bends: The precision of the groove allows for incredibly sharp, consistent bends with a minimal inner radius, creating a professional, high-end look that clients demand.

3. Enhanced Design Flexibility and Intelligence (Smarter Cuts)

A V-grooving machine unlocks new creative and technical possibilities.

Complex Designs Made Simple: Create intricate patterns, louvers, and shadow lines directly into flat sheets before bending. This is a key technique in decorative metal V-grooving for architectural features, art installations, and high-design furniture.

Material Versatility: These machines handle a wide range of materials and thicknesses. From thin aluminum sheets to thicker stainless steel, a single machine can process diverse job orders without retooling.

Precision and Repeatability: With CNC V-grooving systems, you can program complex groove patterns and achieve microscopic levels of accuracy. Once a program is saved, you can reproduce the same part perfectly, year after year, ensuring absolute consistency across all projects.

4. Significant Cost Reduction

The return on investment (ROI) for a V-grooving machine is compelling.

Labor Cost Savings: Automating the grooving process reduces the skill level and time required for bending preparation, freeing up highly skilled press brake operators for more complex tasks.

Reduced Material Handling: Since bending can often be done by hand directly at the assembly station, you minimize the movement of heavy sheets to and from the press brake, reducing handling time and the risk of damage.

Lower Tooling Costs: A V-grooving machine requires only a set of standard-angle carbide blades, unlike a press brake, which needs a large and expensive library of punches and dies for different bend angles and radii.

Key Applications: Where V-Grooving Machines Shine

This technology is not a niche tool; it’s a versatile solution for numerous industries.

Architectural Signage and Letters: Creating sharp, clean bends on stainless steel, aluminum, or brass sign boxes and channel letters is the classic application. It delivers the flawless corners required for high-end branding.

Electrical Enclosures and Control Panels: For manufacturing cabinets, boxes, and racks with a professional finish and precise dimensions.

Elevator Interiors and Architectural Cladding: Producing decorative panels with intricate grooves and perfect bends for modern building interiors.

Kitchen Equipment and Catering Supplies: Fabricating food-safe tables, counters, and containers with hygienic, burr-free edges.

Display and Retail Fixtures: Building sturdy, good-looking shelving units, display cases, and point-of-purchase (POP) displays quickly and cost-effectively.

HVAC Ductwork and Fabrication: For creating specialized fittings and components with precise seals.

Choosing the Right Machine: Manual vs. CNC V-Grooving

When considering a V-grooving machine purchase, your main choice will be between manual and CNC models.

Manual V-Grooving Machines: Operated with hand wheels and manual positioning. Ideal for smaller shops with lower volumes or those working on simpler, repetitive shapes. They offer a lower entry cost and are excellent for custom metal fabrication shops that need flexibility without complex programming.

CNC V-Grooving Machines: Controlled by a computer numerical system. These are the pinnacle of automated sheet metal processing. They offer unmatched speed, precision, and repeatability for high-volume production runs and complex designs. Features like automatic tool positioning and file import (e.g., DXF) make them incredibly efficient.

Considerations for Purchase:

Workpiece Size: Determine the maximum sheet size you need to process.

Material Type and Thickness: Ensure the machine has the power and rigidity to handle your standard materials.

Groove Angles: Standard machines offer common angles, but verify the available options.

Production Volume: A CNC machine is almost always justified for high-volume production.

Ease of Use: Consider the learning curve for your operators.

Integrating V-Grooving into Your Existing Workflow

Adopting a new technology should streamline, not disrupt. Fortunately, V-grooving machines integrate seamlessly.

Design: Design your parts in CAD software as flat patterns, marking the groove lines.

Nesting: Nest your parts on a sheet for optimal material usage.

Cutting: Cut the overall blank shape using your laser, plasma, or waterjet cutter.

V-Grooving: Move the blank to the V-grooving machine to cut all necessary bend lines.

Bending and Assembly: Bend by hand or with a simple brake and assemble. Deburring is typically unnecessary.

This workflow represents a lean manufacturing approach, minimizing waste and handling while maximizing value-added time.

Conclusion: Investing in a Smarter Future

The metal fabrication landscape is evolving, driven by demands for higher quality, faster turnaround, and lower costs. The V-grooving machine is no longer a luxury item for specialized shops; it is a fundamental precision sheet metal tool that empowers businesses to meet these modern challenges head-on.

By delivering faster cycle times, impeccable finish quality, and unparalleled design flexibility, this technology truly is your key to faster, cleaner, and smarter cuts. It’s an investment that pays for itself not just in monetary terms, but in enhanced capability, reduced rework, and the ability to win more demanding, high-value contracts. In the pursuit of manufacturing excellence, the V-grooving machine is an indispensable ally.
