How Does a Tandem CNC Press Brake Differ from a Standard CNC Press Brake?

In the world of metal fabrication, precision and efficiency are paramount. Among the most essential machines for shaping metal sheets is the CNC press brake — a computer-controlled tool used to bend and form metal with exceptional accuracy. However, as production demands grow more complex, manufacturers often find that a single press brake, no matter how advanced, may not be sufficient for handling long workpieces or high-volume projects. This is where the Tandem CNC press brake comes into play.

While both machine types share the same core function — bending metal sheets — they differ in design, capacity, operation, and flexibility. Understanding these distinctions can help manufacturers choose the right machine for their production goals.

1. Basic Concept and Functionality

A standard CNC press brake is a standalone machine consisting of an upper punch and a lower die, which together form metal by applying controlled force. Its computer numerical control (CNC) system governs the bending angle, positioning, and force with remarkable precision, ensuring consistency and repeatability across batches.

In contrast, a Tandem CNC press brake involves two (or sometimes more) press brakes connected and operated in unison through an integrated control system. Each machine can function independently or synchronously, depending on the production needs. This dual arrangement enables operators to handle longer workpieces that would exceed the capacity of a single press brake, while still maintaining the high precision expected from CNC equipment.

Essentially, the tandem configuration expands the bending length and tonnage capacity, allowing for greater flexibility in fabrication without sacrificing accuracy.

2. Machine Configuration and Design

The structural difference between the two is immediately visible.

• Standard CNC press brake:
  Typically features a single machine body, one hydraulic or electric system, and one controller. It is designed to handle specific maximum lengths and tonnages — for instance, 3 meters and 160 tons.

• Tandem CNC press brake:

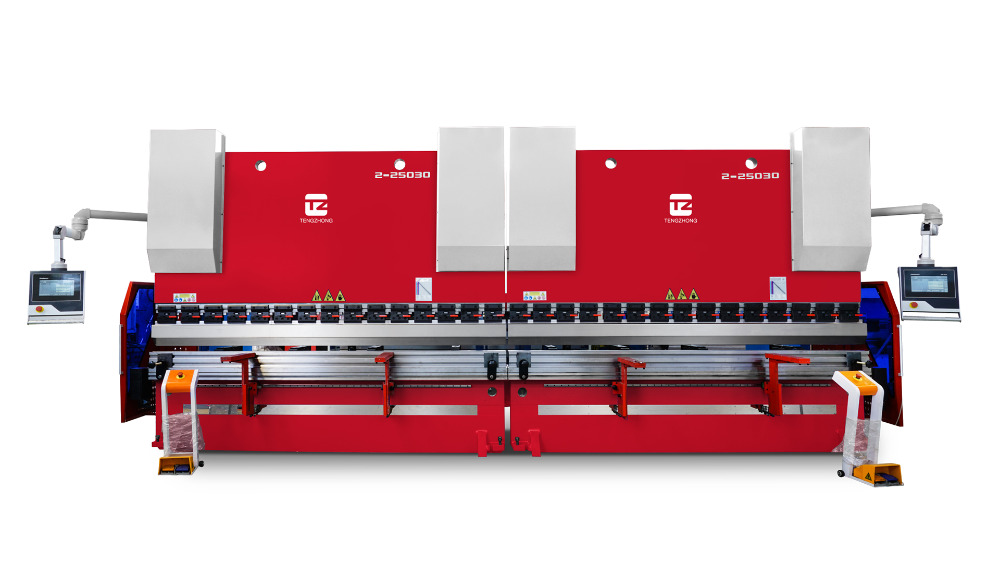

  Consists of two press brakes placed side by side, each equipped with its own hydraulic system, ram, and backgauge. These are electronically linked through a master-slave control system, allowing both machines to operate in perfect synchronization as if they were one long machine.

When connected, the tandem unit can handle larger parts such as long panels, enclosures, or structural components that may measure 6 to 12 meters in length — a task impossible for a standard press brake.

This design flexibility is particularly beneficial in industries like aerospace, shipbuilding, wind energy, and construction machinery, where oversized components are common.

3. Control System and Synchronization

The CNC control system is the “brain” of any press brake, dictating how precisely the machine executes bending tasks.

A standard CNC press brake uses a single controller to manage all operations — positioning, pressure, and angle — within its own workspace. The system is self-contained and highly optimized for the machine’s dimensions and capacity.

In a Tandem CNC press brake, synchronization becomes more complex. Two machines must coordinate their movements perfectly to ensure uniform bending along the entire length of the workpiece. To achieve this, an advanced tandem control system links both CNC units via a communication network.

Key synchronization functions include:

• Maintaining consistent ram speed and pressure on both sides.
• Coordinating backgauge positions for accurate part alignment.
• Ensuring that angular deviations are corrected automatically through feedback loops.

This level of coordination requires not only powerful controllers but also precise feedback from linear encoders, pressure sensors, and hydraulic valves.

4. Operational Modes

Another major distinction lies in operation flexibility.

• A standard CNC press brake operates independently. Every bending operation is performed within its own maximum length and capacity.

• A Tandem CNC press brake, however, can operate in two modes:

  1. Tandem Mode: Both machines are linked together to handle long or heavy workpieces.
  2. Independent Mode: Each machine operates separately, performing different tasks simultaneously.

This versatility allows manufacturers to adapt quickly to varying production needs. When long parts are not required, each press brake can function independently to double productivity — essentially providing two machines in one setup.

5. Bending Capacity and Workpiece Size

Perhaps the most obvious difference between the two machines is the bending capacity.

A standard CNC press brake is ideal for typical sheet metal lengths — often between 1 to 4 meters — depending on its model. It is sufficient for most fabrication workshops dealing with small to medium parts, such as brackets, enclosures, or frames.

On the other hand, a Tandem CNC press brake is specifically designed to accommodate extra-long and heavy-duty components. By combining two machines, the effective bending length may reach 8, 10, or even 12 meters. This makes it indispensable for industries producing large panels, elevator doors, vehicle bodies, or bridge components.

Moreover, since the total bending force is shared between the two units, a tandem system can achieve higher tonnage without requiring one massive press brake, which would otherwise be costly and difficult to transport or install.

6. Installation and Space Requirements

A standard CNC press brake requires a relatively compact footprint and can be installed easily in most workshops.

A Tandem CNC press brake, by contrast, demands considerably more floor space due to its length and dual-machine structure. It also requires careful alignment during installation to ensure both machines are perfectly level and parallel.

Additionally, tandem systems need more robust foundations to handle the combined load and prevent vibration or misalignment. The installation process is more complex and often involves technical assistance from the manufacturer or service engineers to calibrate synchronization and communication systems.

While this setup process may take longer, the resulting performance benefits often justify the effort for facilities dealing with large-scale components.

7. Productivity and Efficiency

Productivity is a key motivation behind the use of a Tandem CNC press brake.

In tandem mode, operators can produce long components in one setup instead of splitting them into smaller sections and welding them later — a process that saves both time and labor while improving accuracy and reducing distortion.

In independent mode, two operators can use each machine separately for different parts, effectively doubling output compared to a single large machine.

A standard CNC press brake, while efficient for small and medium parts, lacks this operational flexibility. It is typically limited to sequential operations, which can slow down throughput when part variety or size changes frequently.

For high-mix or long-length production environments, the tandem configuration provides a significant edge in workflow efficiency.

8. Accuracy and Repeatability

Both machine types rely on CNC precision, but the challenges differ.

A standard CNC press brake maintains accuracy through rigid frames, high-quality hydraulic or electric drives, and CNC compensation systems. The bending precision is typically within ±0.1 mm, sufficient for most manufacturing needs.

For a Tandem CNC press brake, maintaining consistent accuracy across an extended bending length is more challenging. The system must synchronize two separate rams and backgauges to move identically. Even slight deviations can result in uneven bends.

To overcome this, advanced tandem systems use electronic synchronization, angle measurement systems, and real-time compensation algorithms to ensure both machines act as a single unit. When properly calibrated, tandem systems can achieve accuracy on par with, or even superior to, standard models.

9. Maintenance and Complexity

Maintenance needs also vary between the two types.

A standard CNC press brake has fewer components, making it easier and less costly to maintain. Operators typically focus on hydraulic oil checks, alignment verification, lubrication, and periodic software updates.

A Tandem CNC press brake, on the other hand, involves twice the number of hydraulic circuits, sensors, and controllers. Regular calibration of synchronization systems is essential. Troubleshooting can be more involved, as faults may arise in communication or alignment between the two units.

Nonetheless, modern tandem machines are designed with diagnostic systems that simplify maintenance by alerting operators to specific issues before they affect production.

10. Cost Considerations

Cost is another important differentiator.

A standard CNC press brake is more affordable and sufficient for small to medium-sized workshops. The initial investment, operating costs, and energy consumption are generally lower.

A Tandem CNC press brake, being larger and more sophisticated, naturally involves a higher initial investment and greater installation and maintenance costs. However, it provides value in applications that require large parts or versatile production. When used effectively, its ability to operate as two machines in one setup can significantly offset the cost through productivity gains.

11. Application Scenarios

To summarize their most suitable use cases:

• Standard CNC press brake:
  Ideal for small and medium fabricators producing components like brackets, panels, or frames that fit within standard machine lengths.

• Tandem CNC press brake:
  Best suited for large-scale industries — aerospace, shipbuilding, construction machinery, transportation, and renewable energy — where long or heavy workpieces are common and high bending capacity is crucial.

12. Decision Factors for Manufacturers

When deciding between a standard or tandem press brake, several factors should guide the choice:

1. Workpiece Length: If parts frequently exceed 4 meters, a tandem setup is more practical.
2. Production Volume: For high-mix, low-volume operations, a standard press brake is cost-effective; for large-scale, long-part production, a tandem system excels.
3. Available Space: Tandem machines require significant installation space and a solid foundation.
4. Budget and ROI: While the upfront cost of a tandem press brake is higher, its dual operation mode can improve long-term return on investment.
5. Operator Skill Level: Tandem machines require trained operators familiar with synchronization and system calibration.

13. Future Trends and Technological Developments

The gap between standard and tandem press brakes continues to narrow as technology advances. Modern CNC systems incorporate AI-assisted bending, automatic angle correction, and IoT-based monitoring, enhancing both types of machines.

For tandem systems, future developments focus on simplified synchronization, energy efficiency, and automated setup adjustments. As digital manufacturing evolves, the integration of press brakes into smart factories will allow seamless communication between multiple machines, optimizing workflow and minimizing downtime.

Conclusion

A Tandem CNC press brake and a standard CNC press brake serve the same fundamental purpose — bending metal with precision — but they cater to very different production needs. The standard version offers simplicity, efficiency, and affordability for everyday sheet metal fabrication, while the tandem configuration provides unmatched flexibility, extended capacity, and productivity for handling oversized or high-volume parts.

Choosing between the two depends largely on the size of the workpieces, production demands, and long-term operational goals. For workshops focusing on versatility and scalability, the Tandem CNC press brake represents a strategic investment in both capacity and capability.

In the end, understanding how these two systems differ allows manufacturers to make informed decisions — ensuring that their bending equipment aligns with both current and future production requirements.
